Woven Glass Fabric Mica Tape- Generator

Main wall insulation for VPI with acceleratorFlexible for an easy coil manufactureExcellent impregnabilityFor Thermal Class F insulation systemRaw materials: based upon a woven glass fabric with an impregnated muscovite mica paper.Application: in generators for the slot and end winding insulation of

Send Inquiry

Main wall insulation for VPI with accelerator
Flexible for an easy coil manufacture
Excellent impregnability
For Thermal Class F insulation system
Raw materials: based upon a woven glass fabric with an impregnated muscovite mica paper.

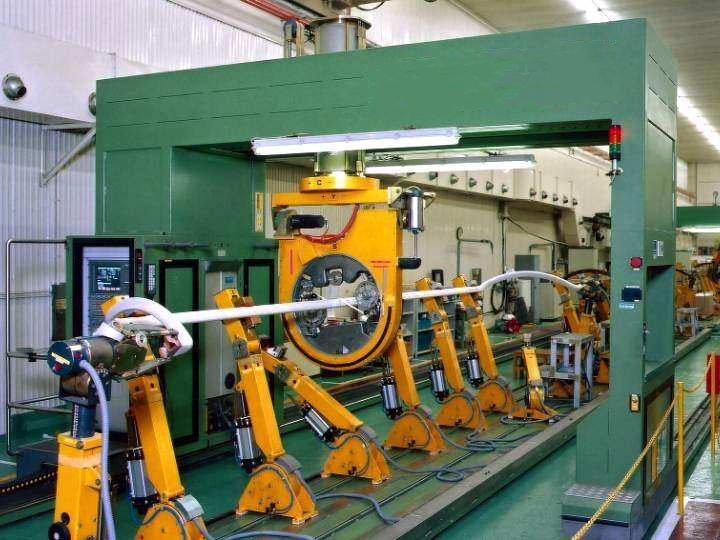

Application: in generators for the slot and end winding insulation of bars which are to be vacuum impregnated pressure (VPI), designed to be used with an epoxy-anhydride resin.
Process: recommend half lapped
Size: width 20mm and above
Technical datasheet

Property	Unit	Value	Test method
Porosity	s/100ml	≤1000	ISO 5636/5
Thickness	mm	0.15±0.02	IEC 60371-2
Total weight	g/m2	198 ± 17	IEC 60371-2
Mica paper	g/m2	160± 10	IEC 60371-2
Glass fabric	g/m2	23±2	IEC 60371-2
Accelerator content	mg/m2	460± 115
Resin content	g/m2	15±4	IEC 60371-2
Tensile strength	N/cm	≥80	IEC 60371-2
Breakdown voltage	kV	≥1.5	IEC 60371-2
Stiffness	N/m	≤60	IEC 60371-2
Min. shelf life at 20℃	Mt.	12
Min. shelf life at 5℃	Mt.	24
Thermal class		F (155℃)	IEC 60085
